RESIDENTIAL & COMMERCIAL MOBILITY
Precision Engineered Passenger Elevators
Smooth, whisper-quiet vertical transit engineered for independent villas, residential societies, and commercial towers with advanced PMSM energy efficiency.
Up to 40% Energy Savings
Permanent magnet synchronous gearless traction delivers whisper-quiet performance and zero oil contamination.
Integrated Safety & ARD
Automatically moves the car to the nearest landing and opens doors during sudden power failure.
Millimeter Leveling Accuracy
Advanced closed-loop VVVF frequency control eliminates floor trip hazards and ensures jerk-free acceleration.
ENGINEERING SPECIFICATIONS
Passenger Lift Technical Parameters
Standard configurations and custom engineered parameters compliant with Indian & European safety codes.
| Specification Parameter | Standard Configuration | High-Rise & Custom Options |
|---|---|---|
| Carrying Capacity | 4 to 16 Passengers (272 kg – 1088 kg) | Up to 26 Passengers (2000 kg) |
| Rated Speed | 0.65 m/s – 1.5 m/s | 1.75 m/s – 2.5 m/s (High-Rise) |
| Drive Technology | PMSM Gearless Traction (MRL / MR) | Energy-Regenerative Drive |
| Control System | Microprocessor-Based Control | Group Supervisory (Duplex/Triplex) |
| Leveling Accuracy | Advanced Precision Leveling (±3 mm) | Millimeter Floor Sensor Sync |
| Door Operation | Fully Automatic Center / Side Opening | Full Vision Glass / Fire-Rated Doors |
| Safety Systems | ARD (Auto Rescue) + Multi-Beam Sensors | Biometric Access & BMS Interfacing |
| Statutory Compliance | BIS 14665 & EN 81-20/50 Codes | PWD Approval Certified |

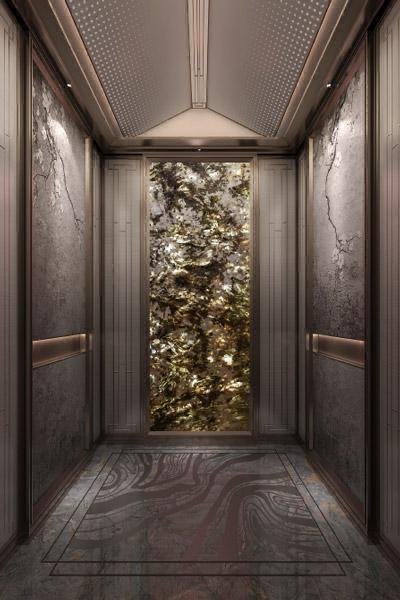

BESPOKE CABIN AESTHETICS
Tailored Interior & Door Finishes
Match your building’s architectural interior with custom stainless steel textures, luxury titanium finishes, and designer ceiling patterns.
DURABLE & MINIMALIST
Hairline SS 304 Finish
Scratch-resistant, fingerprint-proof brushed stainless steel panels engineered for high-traffic residential societies and commercial facilities.
PREMIUM LUXURY
Titanium Gold Mirror
Electroplated titanium gold stainless steel with laser-etched wall panels, warm ambient cove lighting, and marble-composite flooring.
PANORAMIC ARCHITECTURAL
Toughened Frameless Glass
High-clarity laminated safety glass enclosures offering 180° to 360° sightlines for luxury villas, shopping centers, and modern atriums.
ARCHITECTS & BUILDERS RESOURCE
Need Exact Civil Shaft Dimensions & GA CAD Drawings?
Download standard General Arrangement (GA) blueprint sheets with detailed civil pit depth, overhead clearance, machine-roomless (MRL) clearances, and structural wall load calculations.
- Pit Depth: 1200 mm – 1500 mm
- Overhead: 4200 mm – 4600 mm
- MRL & Traditional MR Options
24/7 RAPID ASSISTANCE
Facing a Lift Breakdown or Need an Existing AMC Audit?
Call our direct technical desk for immediate breakdown support or request a free on-site safety evaluation of your current elevator system.
