HIGH-CAPACITY PEDESTRIAN MOBILITY
Commercial & Public Transit Escalators
Heavy-duty, energy-efficient escalators built for continuous, high-volume pedestrian transit in shopping centers, transit hubs, airports, and commercial complexes with zero downtime.
Smart Standby Drive
Intelligent optical radar sensors slow the escalator to eco-standby speed when no passengers are detected, slashing continuous power consumption by up to 35%.
Comb & Skirt Safety Arrays
Comprehensive micro-switch protection including comb plate obstruction sensors, broken drive chain interlocks, and anti-pinch skirt deflector brushes.
Anti-Slip Aluminum Steps
One-piece die-cast aluminum/stainless steel grooved steps with high-visibility yellow safety demarcation resin borders on all three sides.
Robotic-Welded Truss
Structural carbon steel rectangular tube truss with anti-corrosion zinc primer coating engineered for heavy vibration dampening and long service life.
CIVIL & MECHANICAL PARAMETERS
Escalator Technical Specifications
Standard configurations and high-traffic public transit specifications fully compliant with BIS 4591 and European EN 115 safety codes.
| Specification | Commercial / Retail Setup | Public Transit / Heavy Duty |
|---|---|---|
| Angle of Inclination | 30° / 35° (Space-Optimized) | 30° (Public Transit Standard) |
| Step Width | 800 mm – 1000 mm (1 to 2 Persons/Step) | 1000 mm (Heavy Luggage & High Throughput) |
| Rated Speed | 0.50 m/s | 0.50 m/s – 0.65 m/s |
| Theoretical Capacity | 6,000 to 9,000 Persons / Hour | Up to 11,700+ Persons / Hour |
| Balustrade Type | Slim Transparent Toughened Glass (10 mm) | Stainless Steel Inclined / High Glass with Under-Handrail LED |
| Drive Architecture | High-Efficiency Helical Gear / VVVF | Heavy Planetary Drive with Dual Auxiliary Braking |
| Energy Management | Smart Sensor Sleep / VVVF Eco-Standby | Continuous High-Duty Radar Wake-Up Operation |
| Safety Compliance | BIS 4591 & EN 115 Standards | Skirt Deflector Brushes + Comb Safety Light Array |
AESTHETIC & ILLUMINATION ENHANCEMENTS
Balustrade Styles & Accent Lighting
Integrate customized glass balustrades, skirt accent illumination, and handrail color schemes matching your architectural interior.
RETAIL & COMMERCIAL

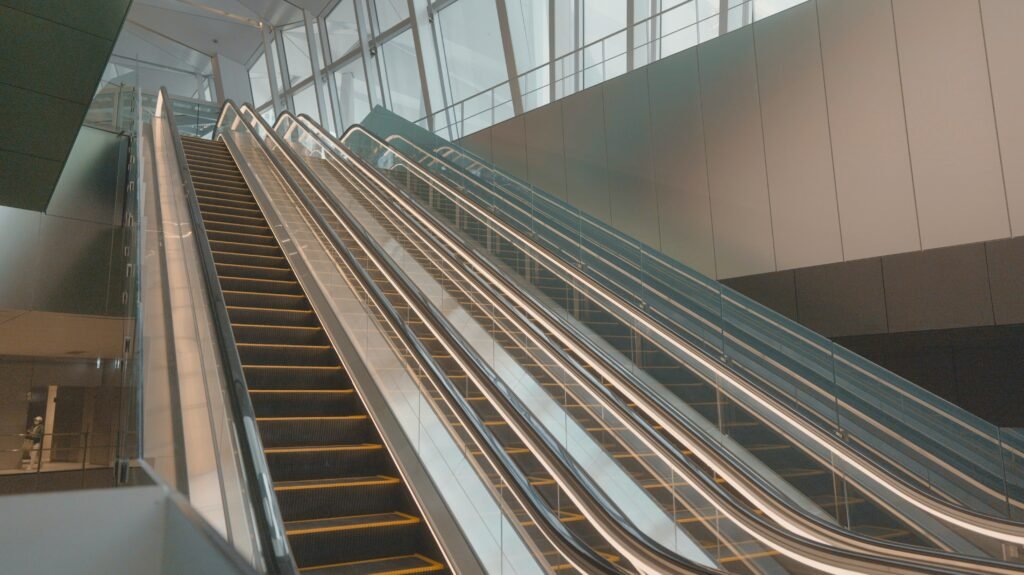

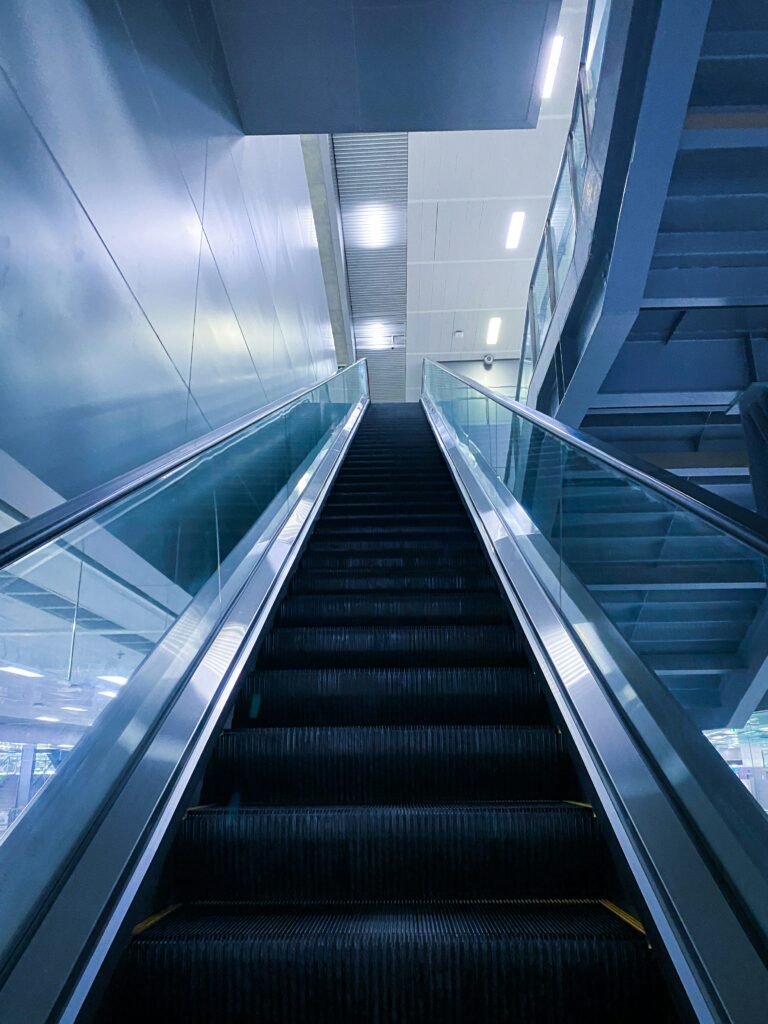

Transparent Toughened Glass
High-clarity 10mm tempered glass panels without vertical metal mullions, maximizing open floor visibility and ambient building light across atrium floors.
TRANSIT & AIRPORT
Hairline SS 304 Balustrade
Solid stainless steel inclined balustrade engineered to withstand intense continuous crowd pressure, luggage collisions, and outdoor covered weather conditions.
VISUAL SAFETY

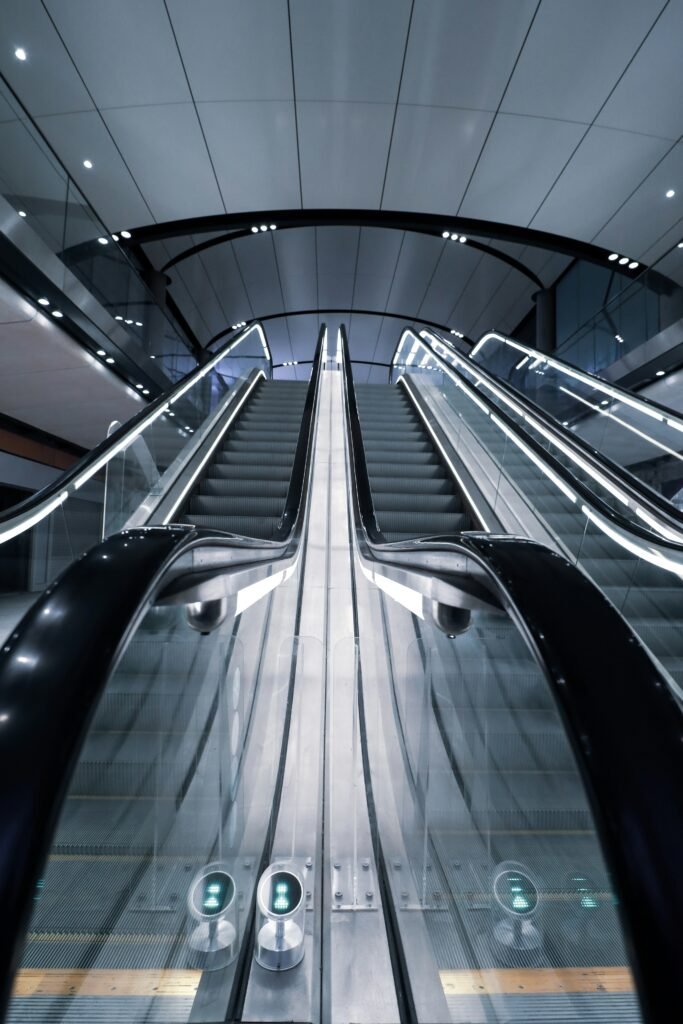

LED Comb & Step Illumination
High-contrast green under-step demarcation lights, continuous LED handrail guidance strips, and illuminated comb plate entry panels for night navigation.
STRUCTURAL CONSULTANTS & MEP PLANNERS
Need Civil Beam Load Calculations & Truss Blueprint Sheets?
Download standard GA drawings with beam-to-beam spans, floor opening dimensions, intermediate support column specs, and total mechanical operating load calculations.
- Inclination: 30° & 35°
- Step Widths: 800 mm & 1000 mm
- EN 115 & BIS 4591 Compliant
