AUTOMOTIVE & PARKING MOBILITY
Heavy-Duty Automobile & Car Elevators
Space-saving vertical vehicle transit engineered for luxury residences, commercial multi-tier parking garages, car showrooms, and automotive service centers. Eliminates space-wasting civil concrete drive ramps.
3,000 kg to 5,000 kg Payload
Engineered with heavy I-beam chassis reinforcement to handle the concentrated single-axle wheel loads of luxury SUVs, sedans, and EV battery weights.

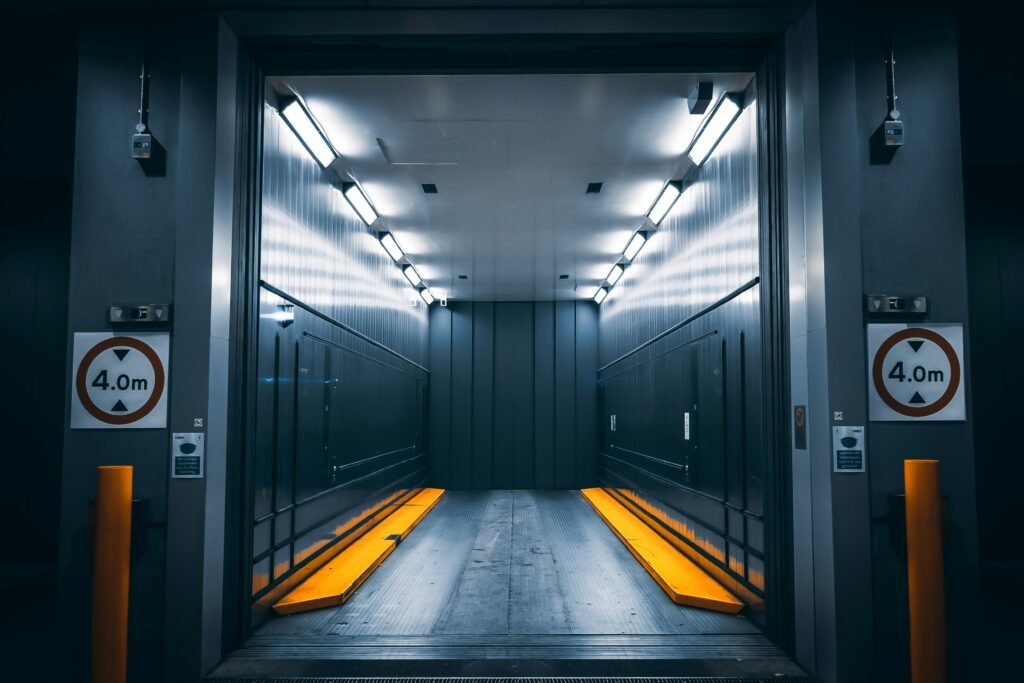

Front & Rear Door Entry
Walk-in and drive-through cabin layouts eliminate dangerous in-cabin vehicle reversing, allowing forward drive-in and forward drive-out navigation.
Photoelectric Stop Sensors
Infrared multi-beam safety arrays and cabin traffic lights guide the driver into exact center alignment before lift motion engages.
Dual Drive Solutions

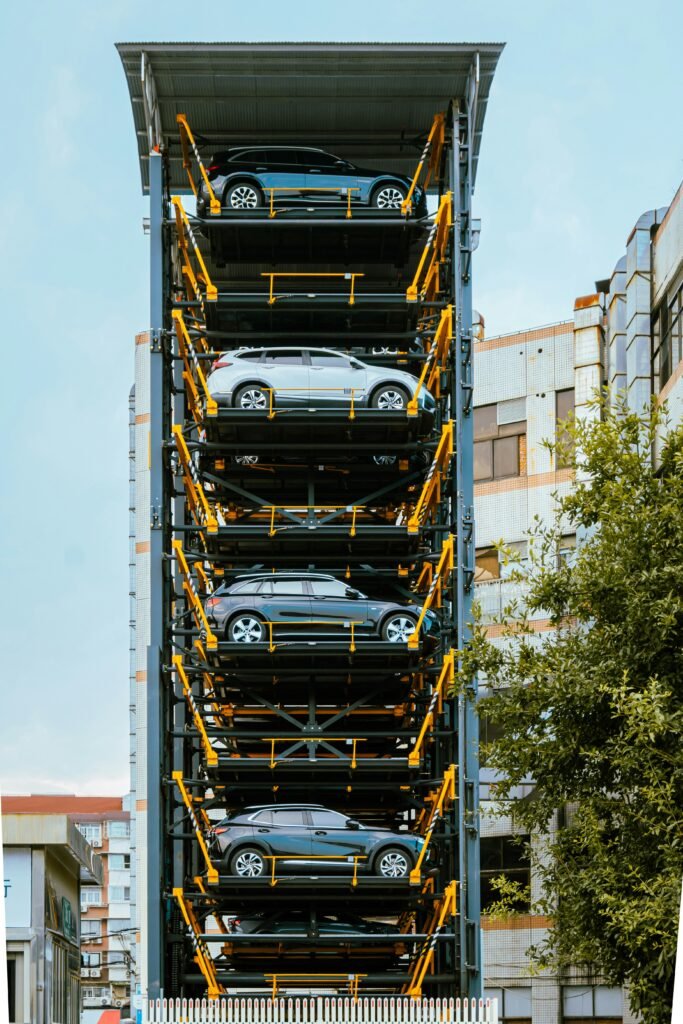

Direct/indirect hydraulic systems for basement-to-ground transfers, or VVVF PMSM traction for multi-level parking podiums.
AUTOMOTIVE ENGINEERING PARAMETERS
Car & Automobile Elevator Technical Parameters
Standard configurations and custom vehicular dimensions built in strict accordance with BIS 14665 and automotive safety codes.
| Specification | Standard SUV / Sedan Setup | Commercial Parking / Heavy Setup |
|---|---|---|
| Carrying Capacity | 3,000 kg – 3,500 kg (Full-Size SUVs & EVs) | 4,000 kg – 5,000 kg+ (Commercial Vans & Armored) |
| Platform Dimensions (W × D) | 2600 mm × 5600 mm | 3000 mm × 6500 mm (Custom Extra-Wide) |
| Rated Speed | 0.25 m/s – 0.50 m/s | Up to 1.0 m/s (High-Duty Traction) |
| Entry / Exit Configuration | Single Front Opening | Front & Rear 180° Drive-Through Doors |
| Door Clear Width | 2400 mm – 2600 mm (Center Sliding Auto) | 2800 mm – 3000 mm (Vertical Bi-Parting / Telescopic) |
| Drive Architecture | Heavy Hydraulic Direct / Indirect Acting | High-Torque PMSM Gearless Traction (MRL / MR) |
| Control & Operation | Microprocessor Vehicle Control | Dual Driver-Level In-Car COP + Remote Calling |
| Leveling & Positioning | Precision Leveling (±3 mm) | Infrared Vehicle Guidance & Anti-Roll Sensors |
| Safety Compliance | BIS 14665, IS 15785 & NBC 2016 | Heavy-Duty ARD + Overload Safety Interlocks |
VEHICLE INTEGRATION & CABIN FINISHES
Platform Flooring & Guidance Features
Engineered with high-traction floor surfaces, impact-resistant perimeter bumpers, and smart driver interface terminals.
HEAVY RIGIDITY
Anti-Skid Chequered Decking
High-gauge embossed chequered steel plate floor preventing tire slip in wet conditions, reinforced with full-perimeter tire bumper rails to protect cabin walls.
DRIVER CONVENIENCE
In-Car Remote Operation
Call and operate the lift directly from the driver's seat using wireless RF remote key fobs or column-mounted exterior car operating panels (COP).
INTELLIGENT DOCKING
LED Parking Guidance Array
Ultra-bright red/green LED entry status signals and digital display panels indicating exact vehicle positioning, current floor, and overload warnings.
ARCHITECTS, PLANNERS & STRUCTURAL ENGINEERS
Replace Space-Consuming Concrete Drive Ramps With a Car Lift?
Save up to 40% of the building’s basement footprint by eliminating circular concrete ramps. Download standard GA drawings, pit load specs, and power requirements.
- Payloads: Up to 5000 kg
- Platform Depth: Up to 6500 mm
- Drive-Through 180° Options
24/7 RAPID ASSISTANCE
Facing a Lift Breakdown or Need an Existing AMC Audit?
Call our direct technical desk for immediate breakdown support or request a free on-site safety evaluation of your current elevator system.
